'69 Bulkhead Refurbishment
Day 7
 |

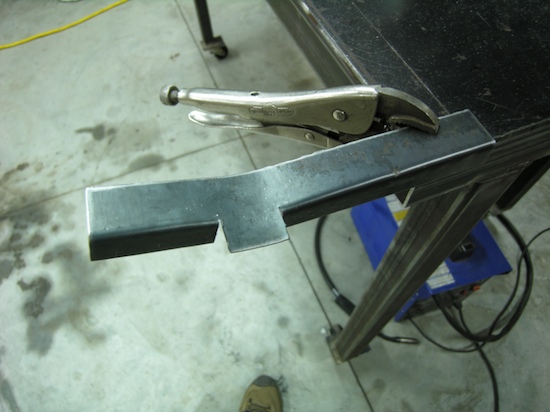

The tunnel patch in progress. Cuts were made to isolate the bends. |
|---|---|
 |

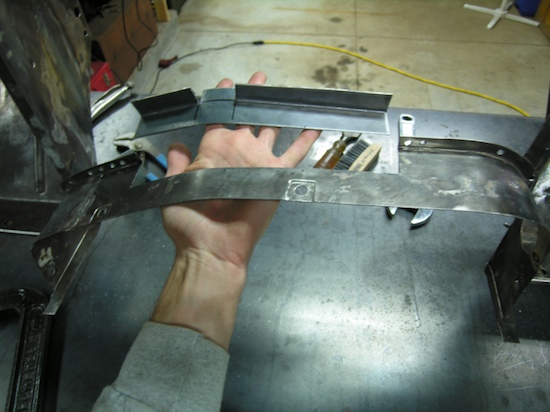

The location of the patch piece. |
 |

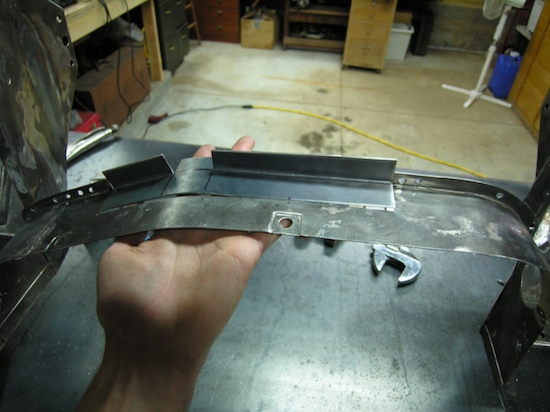

It seems to fit well. I left extra material on top so that I could trim it just right. |
 |
All cleaned up and ready. |
 |

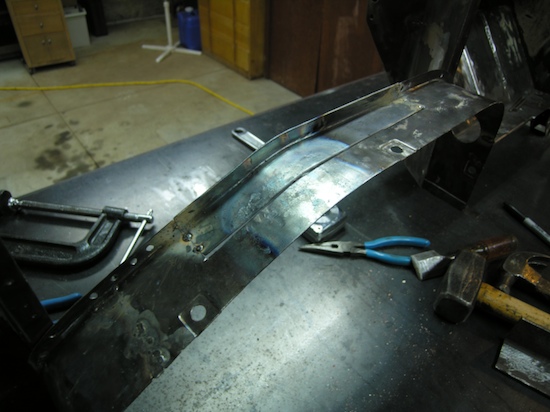

The ends of the patch panel have been tacked together. I used the torch to match the curves and create the curved bend. Lots of work with the hammer, dolly, torch, and wet rag. |
 |

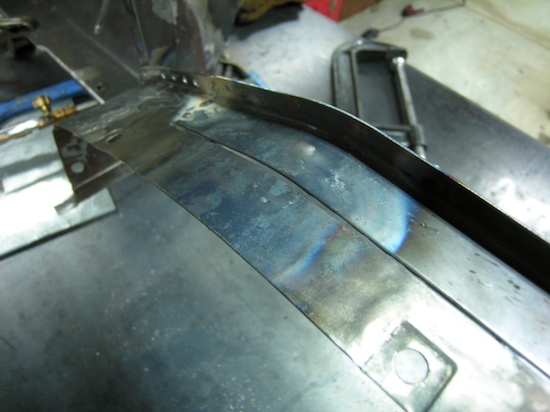

Unfortunately I didn't leave enough material on this end of the patch piece. The problem was solved by building up my tack welds to fill the void. |
 |
Another perspective. |

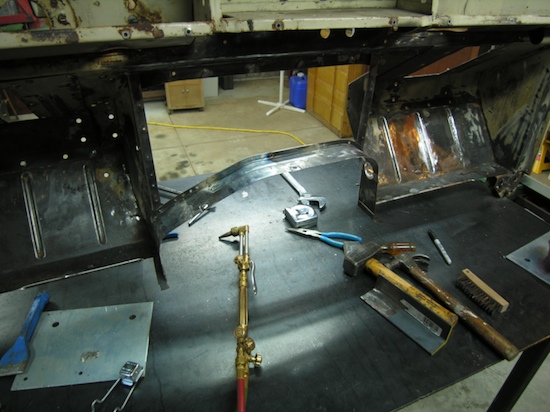

Tools |
|
 |

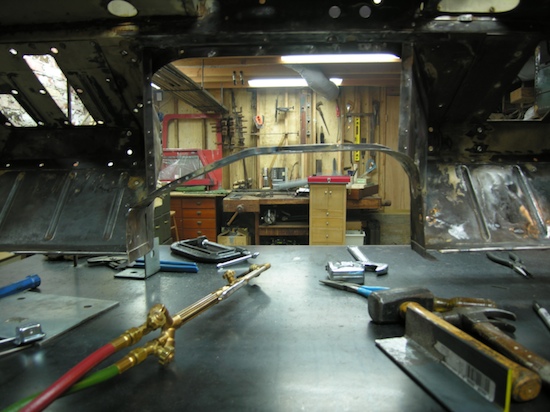

From this angle, you can see the curve is just right for the tunnel. |
 |

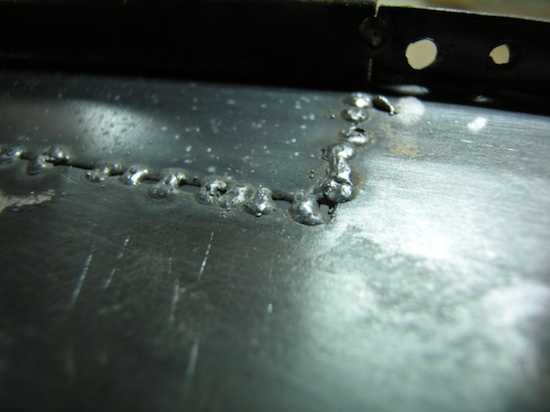

Close up of some tacks. |
 |
This is how the void was filled. It is important to work slowly to minimize the heat input. Too much heat and the resulting warping will make a mess of the work. |
 |
Another angle, perhaps the picture could have been rotated... |
